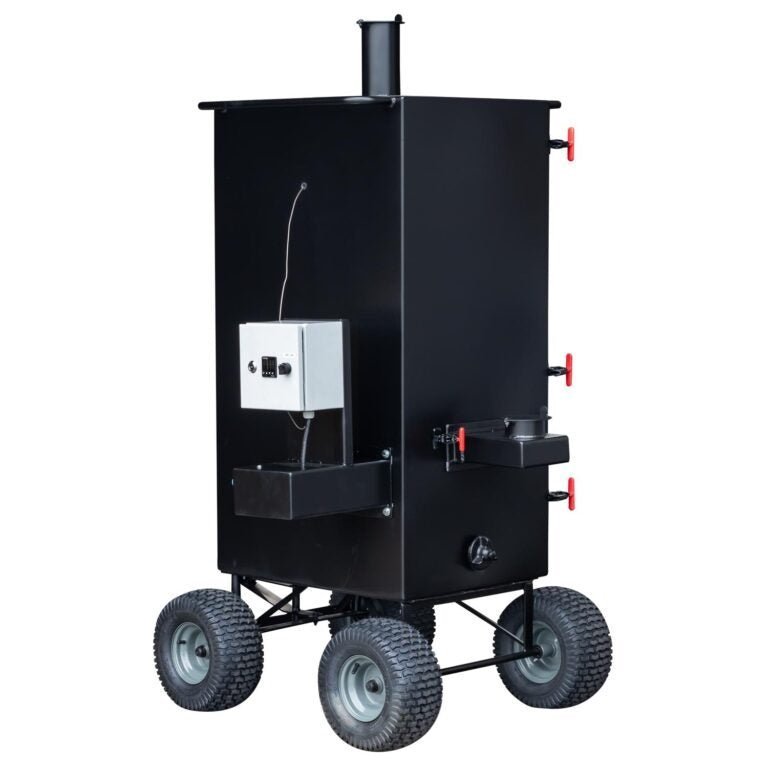

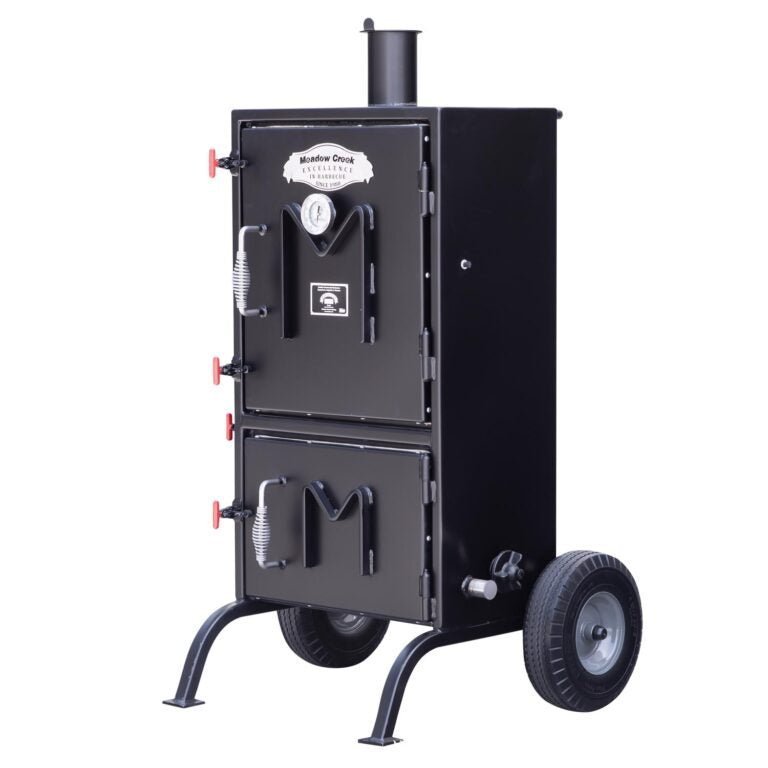

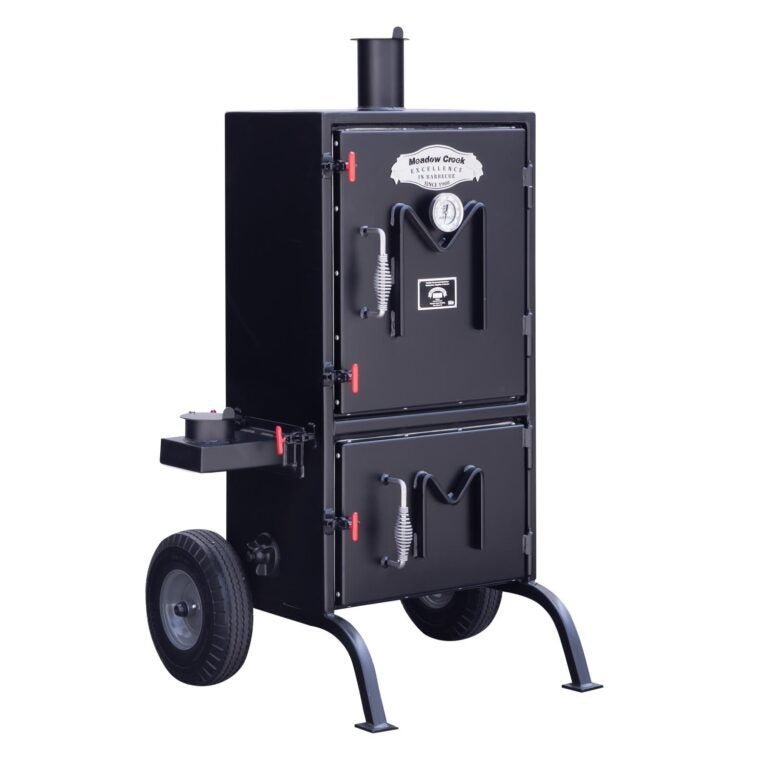

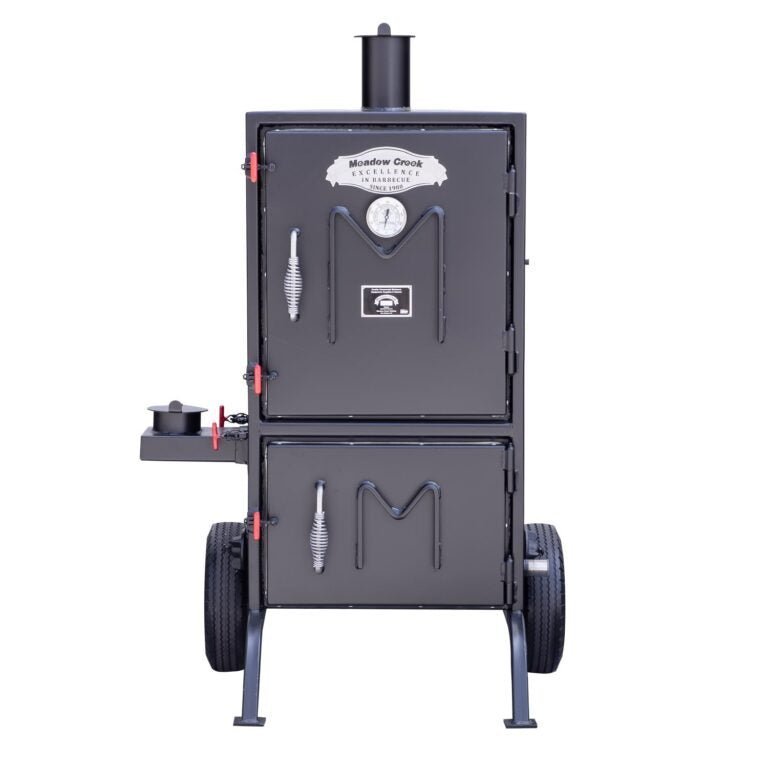

Meadow Creek BX25


Start smokin’ easy with a quality cabinet smoker from Meadow Creek, the BX25. This box smoker is extremely efficient, compact and dependable. It’s been hand-crafted into a heavy-duty smoking machine that will deliver delicious smoky results.

Become a BBQ smoking master with Meadow Creek’s BX25, the best box smoker you’ll ever need. It’s easy to use, fuel-efficient and built Meadow Creek strong. You’ll never have to replace this BBQ smoker. This gravity water smoker is a bit smaller than the BX50, but don't let the size fool you, the BX25 is still a beast.

The BX25 has the same advantages of the BX50 but only 300lbs. less heavy. If you liked the BX50 but found it to be too big or heavy then the BX25 is the cooker for you. This gravity water smoker delivers great results even without the use of water, unlike other brands out in the market. The BX25 allows you to smoke jerky or anything you want to dry smoke without any use of water. That’s how you know the BX25 is a keeper!

Take the next step into becoming the smoking master with the BX25 cabinet smoker.

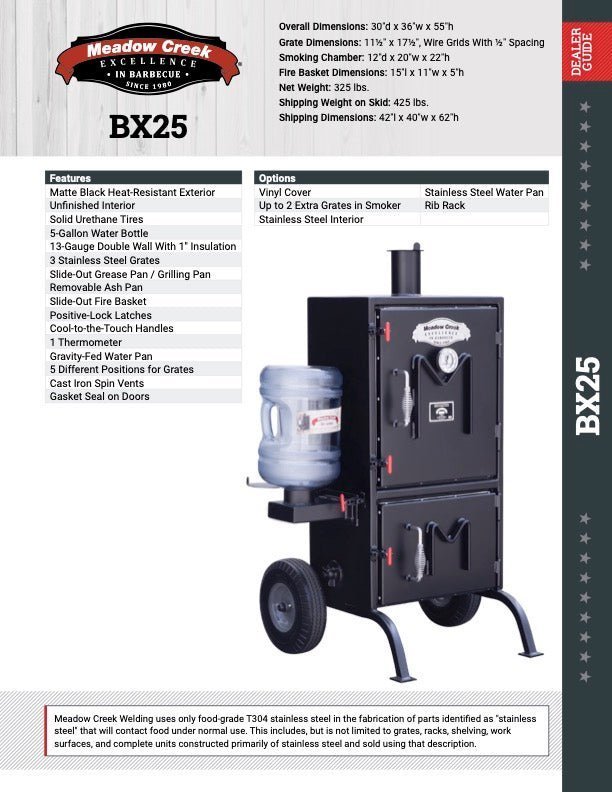

Overall Dimensions
55"H x 36"W x 30"D

Smoking Chamber Dimensions
22"H x 20"W x 12"D

Cooking Area
4.19 sq. ft. (604 sq. in.)

Grate Dimensions
11.5" x 17.5"

Grate Style
Wire Grid With 1/2" Spacing

Number of Grates

Fire Basket Dimensions
5"H x 11"W x 15"L

Net Weight
325 lbs.

Shipping Weight
425 lbs.

Insulation Thickness

Metal Thickness
14 Gauge

Capacity of Pork Butts

Capacity of Baby Back Ribs

Capacity of Spare Ribs

Capacity of St. Louis Ribs

Capacity of Whole Briskets

Capacity of Brisket Flats

Capacity of Chicken Halves

Double walls with 1" insulation

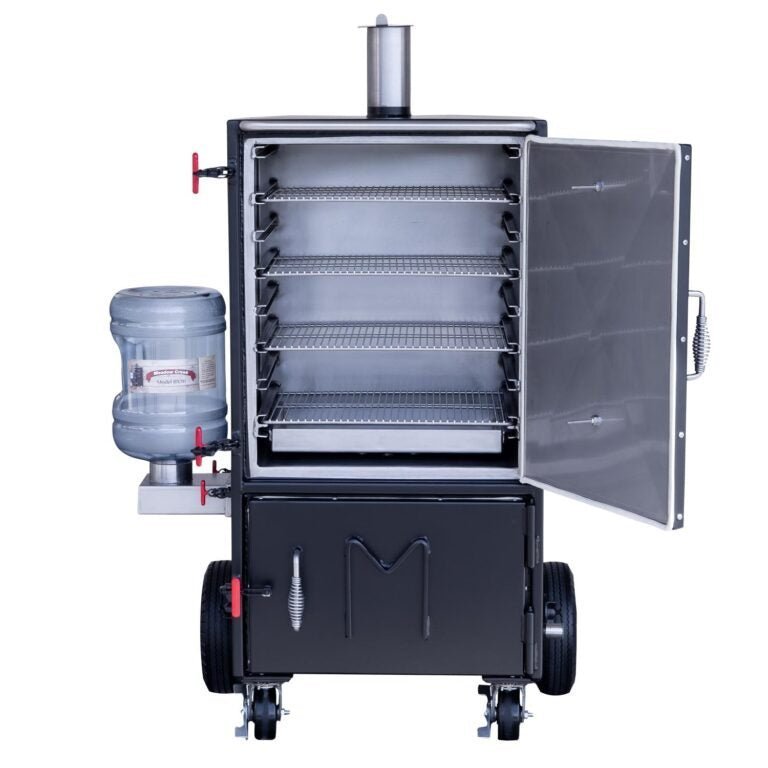

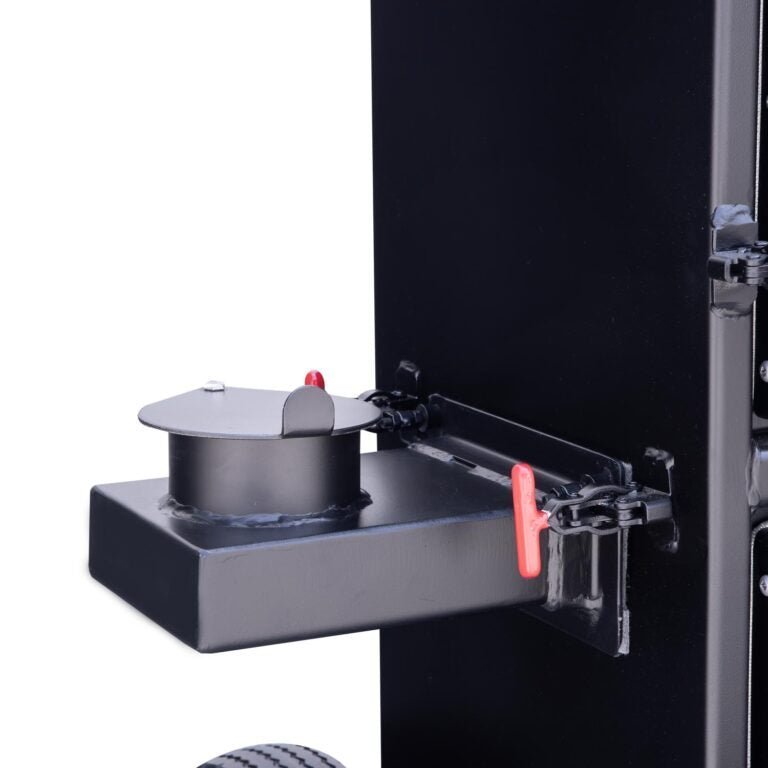

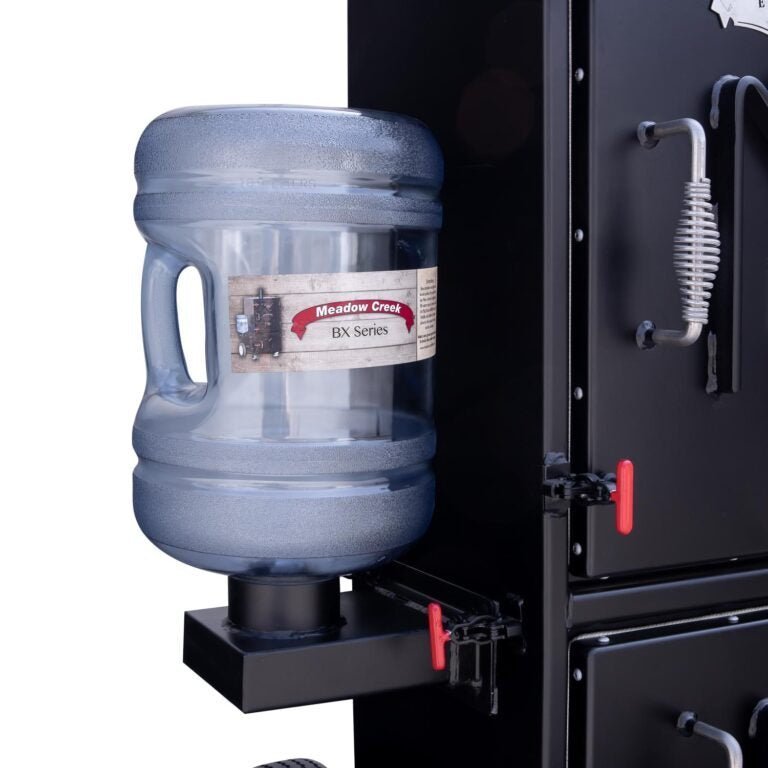

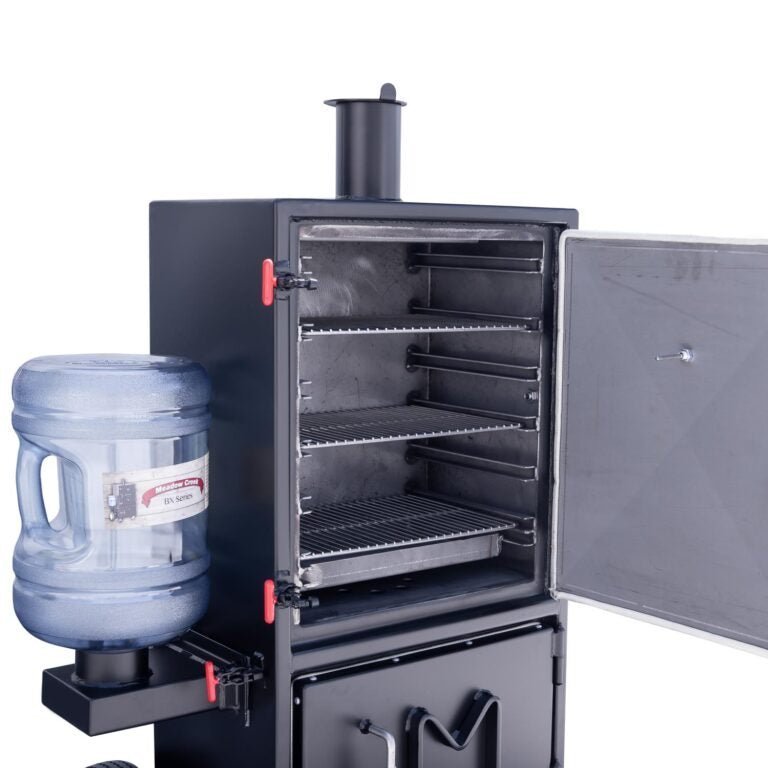

Auto-feed water system and a 5-gallon water jug

Removable water pan

Built for wet and dry smoking

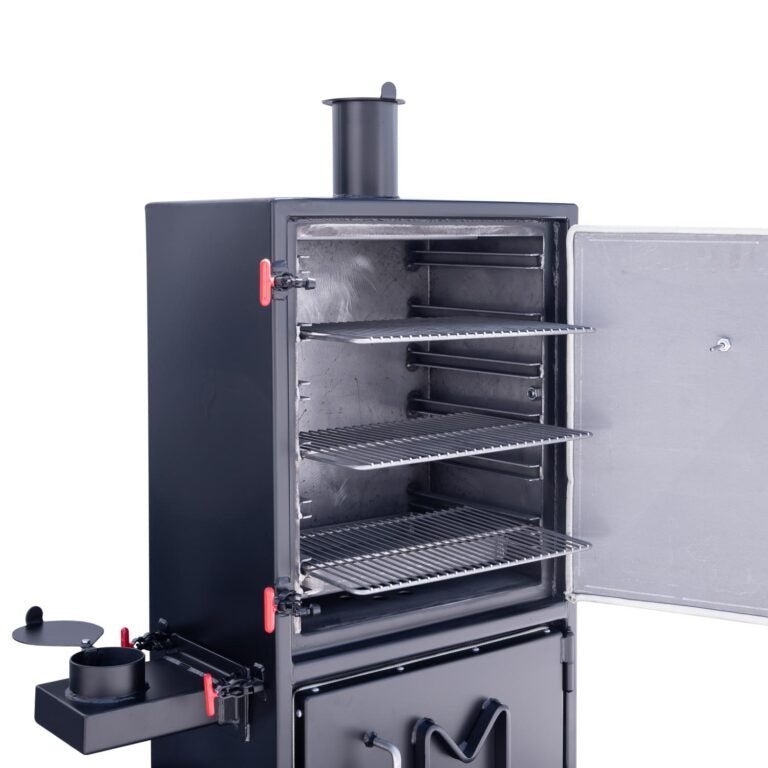

Slide-out cooking grates made of rust-free food-grade T304 stainless steel rod

Adjustable grate configuration (There are 5 slots total, with the option of adding two more grates.)

Painted with black heat-resistant paint in an attractive matte finish

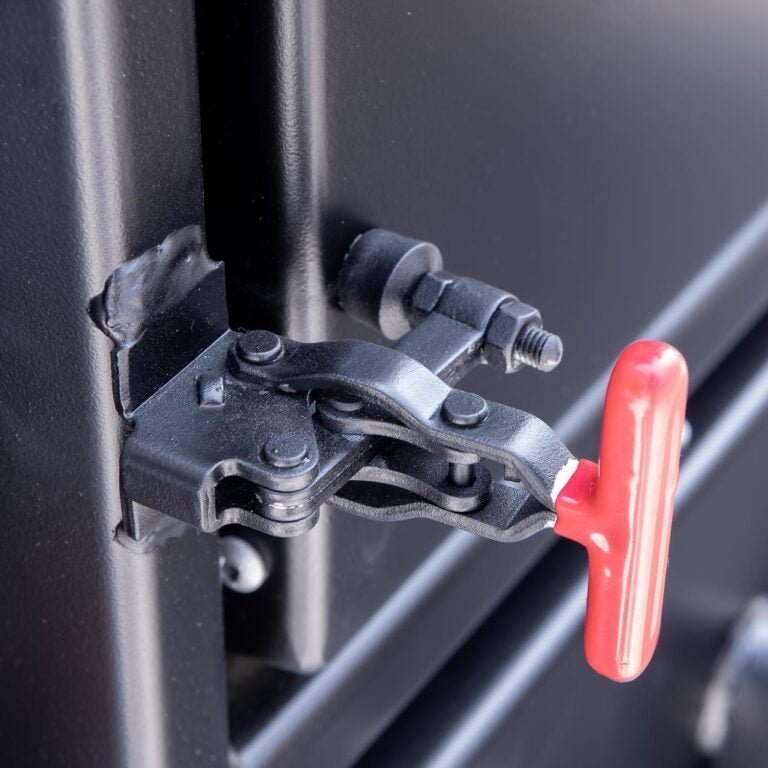

Positive-lock latches on all doors

Built-in Guru adapter for temp controller mounting

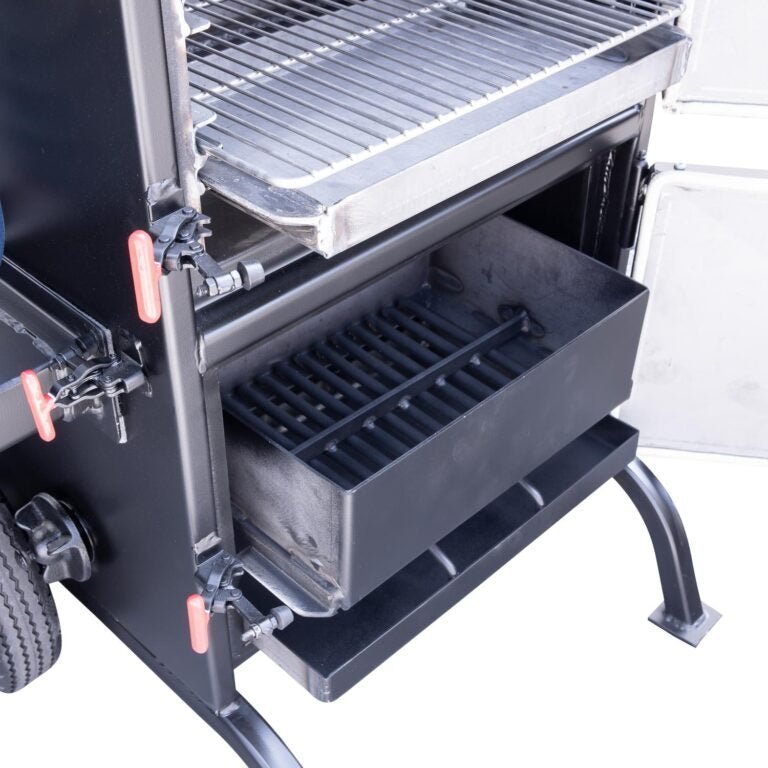

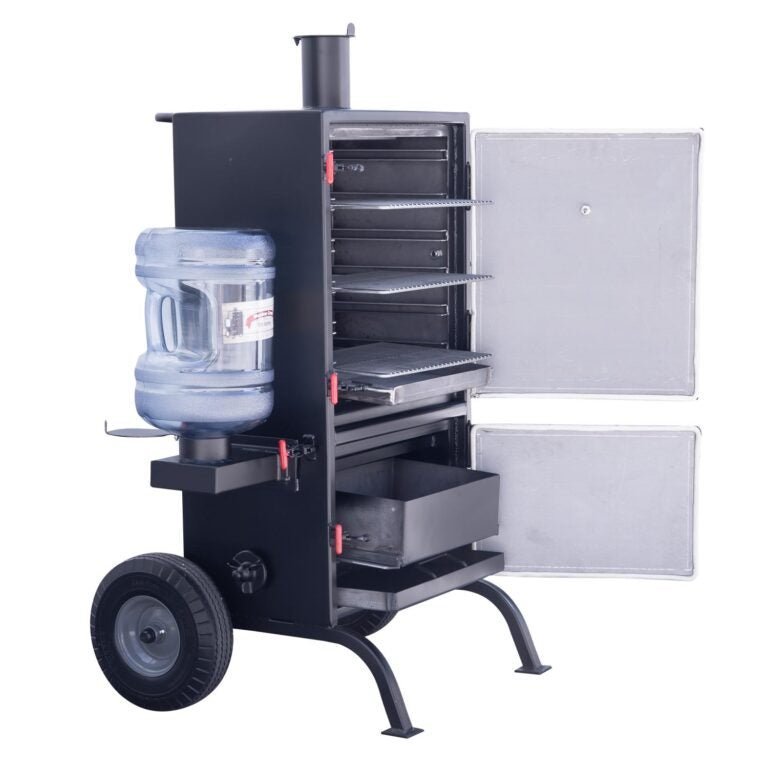

Slide-out charcoal basket with a grate for the ashes to fall through

Rolls on 2 solid urethane tires and rests on two stabilizer legs

Stainless steel handles

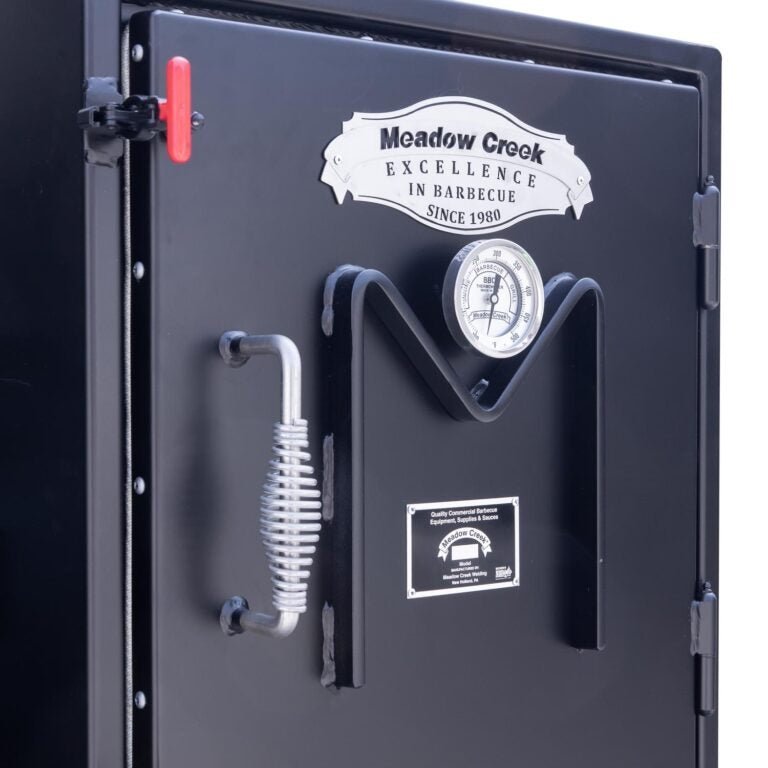

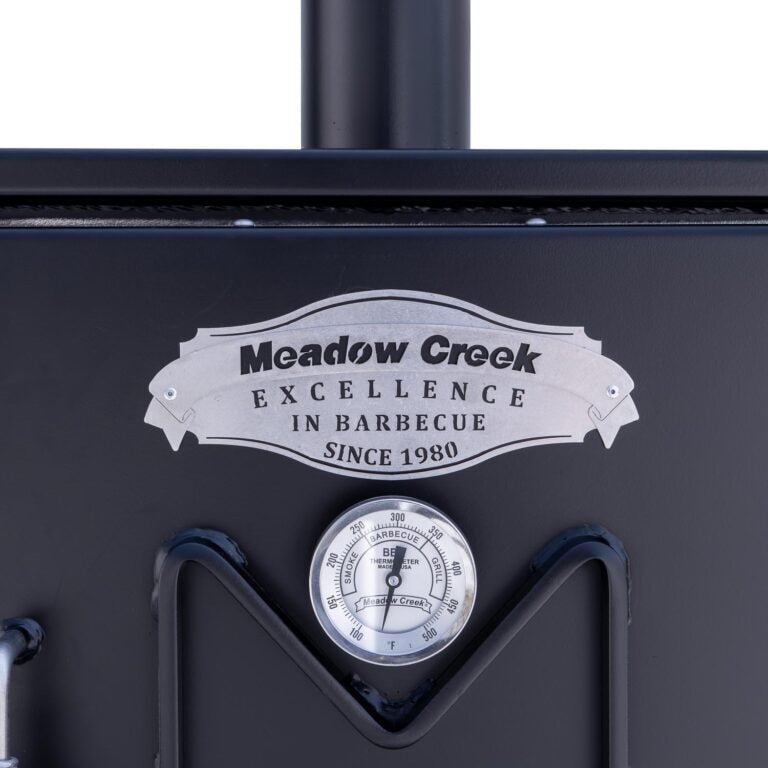

Stainless steel calibratable thermometer

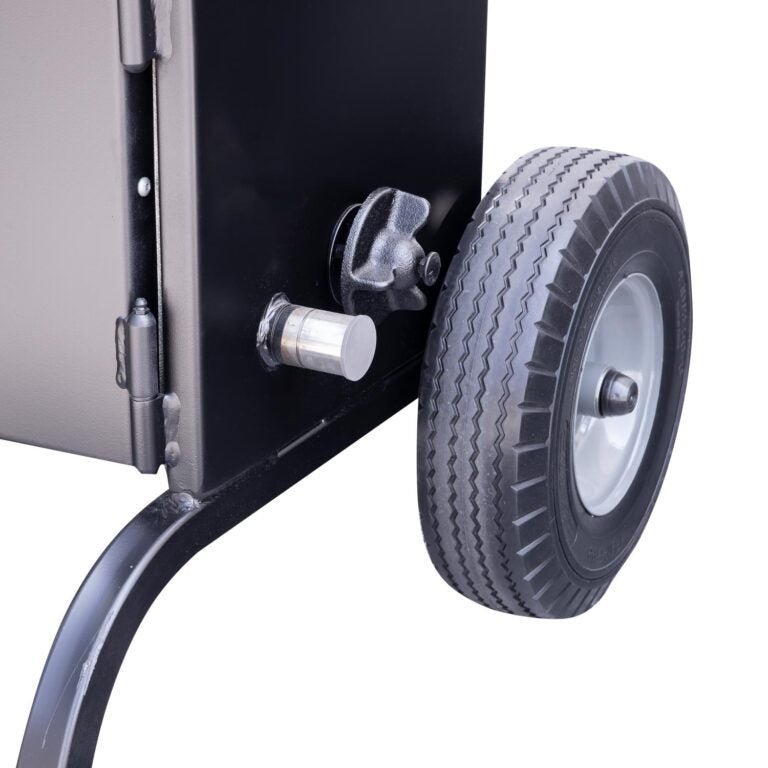

Cast iron spin vents at the bottom of the firebox for precise draft control

Uncoated steel interior
